Ammonite System LED Speleo Mark II SET 9

Ammonite System LED Speleo Mark II Set with ACCU TYPE 9

The Ammonite System LED Speleo Mark II Set with ACCU TYPE 9 is a high-performance umbilical dive light designed for technical and cave diving. This modular system combines a powerful light head with a compact, airline-compliant battery pack, offering versatility and reliability for demanding underwater environments.

The LED SPELEO MKII by Ammonite System is an advanced umbilical dive light designed for rigorous underwater activities. It offers a balanced performance with a 3000 lumens output and various operating modes to cater to different diving conditions. This light features a durable, compact design, and its modularity allows easy integration with other Ammonite systems, enhancing its versatility.

LED Speleo Mark II – Light Head

• Light Output: Up to 3000 lumens
• Beam Angle: Focused 6° spot with a gentle halo for enhanced visibility and communication
• Light Modes:
  • Back-Up: 20% intensity
  • Operational: 40% intensity
  • Boost: 100% intensity
• "Take Me Home" Mode: Automatically activates at 20% output when battery is low, providing over an hour of additional light for safe return
• Construction: Hard-anodized aluminum and Delrin® body with 6 mm tempered glass front
• Dimensions: 116 mm length, 53 mm diameter
• Weight: 262 g (100 g in water)
• Depth Rating: Up to 200 meters

The Ammonite System ACCU TYPE 9 is a compact and robust battery pack designed for use with all Ammonite System umbilical lights. It features a high energy capacity of 96Wh and a rugged construction with Delrin® and anodized aluminum materials, ensuring durability and reliability. Equipped with a BMS (Battery Management System), it guarantees safe operation and prolongs battery life. This eco-friendly product uses recyclable packaging, supporting environmental sustainability.

ACCU TYPE 9

• Battery Type: Lithium-Ion (Li-Ion)
• Capacity: 9 Ah / 96 Wh
• Voltage: 10.95 V
• Charging Time: Approximately 4 hours
• Construction: Delrin® and hard-anodized aluminum with overpressure safety valve
• Dimensions: 246 mm length, 46 mm diameter
• Weight: 705 g (450 g in water)
• Depth Rating: Up to 200 meters
• Air Travel Compliance: Meets UN/DOT 38.3 regulations for lithium batteries

Modular System Features

• Interchangeability: Compatible with all Ammonite System umbilical lights, cables, and batteries
• Customization: Allows easy configuration changes between backmount and sidemount setups
• Ease of Maintenance: Modular design enables quick replacement of components, such as cables, without the need for service center intervention

Working Time

• 3h 10' measured in operational mode
• 1h 55'measured in boost mode
• + over 1 hr "TAKE ME HOME MODE"

Set contains:

1x Led Speleo Head
1x cable your choice: Standard HD, HD Sidemount, UHD or UHD Sidemount
1x ACCU 9Ah

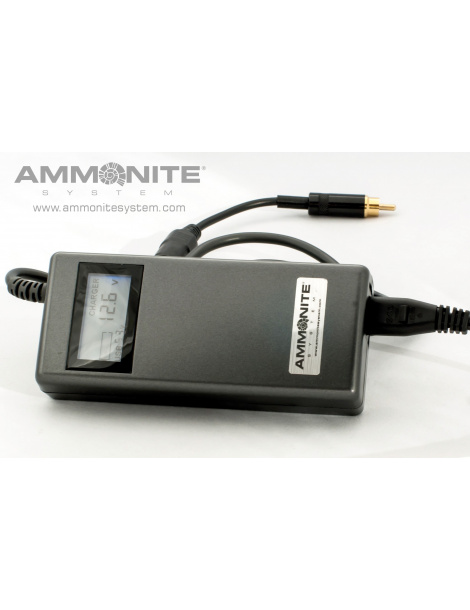

1x charger
1x goodman*

*you can choose from: Soft, Ammonite Soft, Ammonite Standard, Modular or Modular with Scooter Loop
